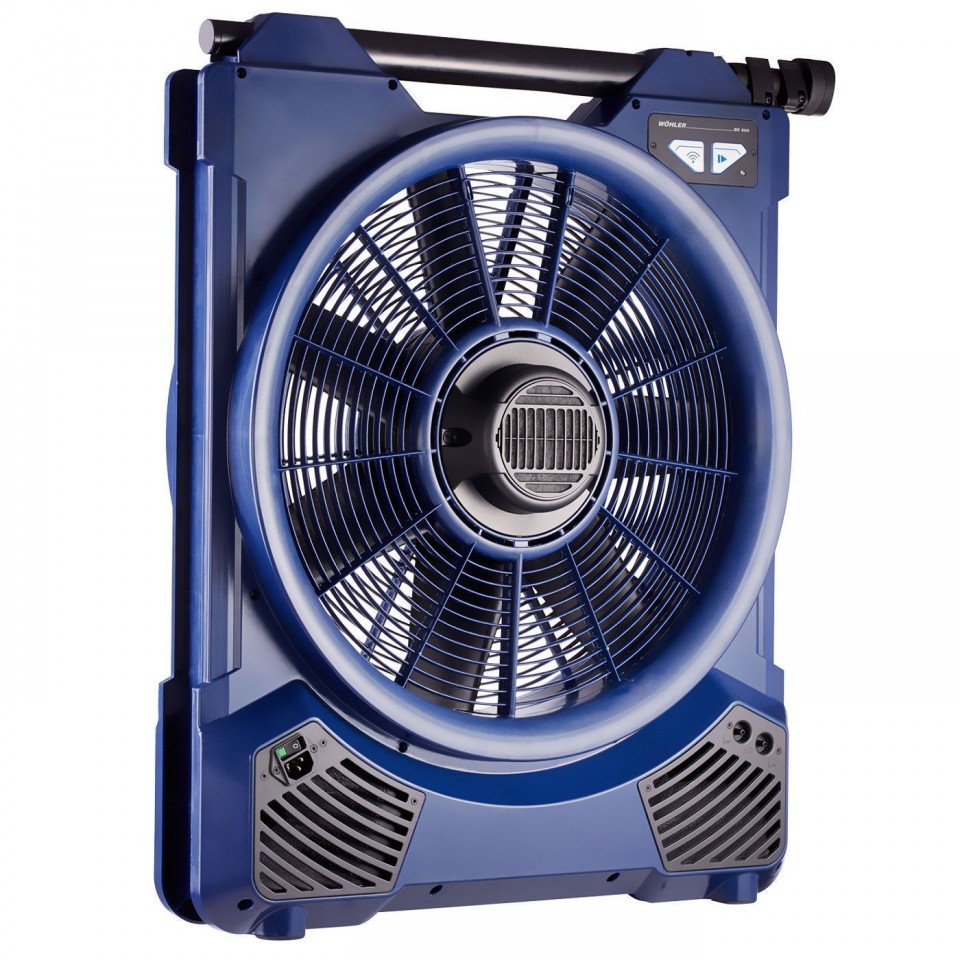

Wöhler BC 600 nuotėkio ieškiklis 6440

Naujasis „Blower Door“ matavimo prietaisas „Wöhler BC 600 Blower Check“ gali padaryti viską dėl didelio oro srauto diapazono. Didelio tikslumo jutiklių technologija užtikrina, kad reikiamas matavimo tikslumas būtų patikimai palaikomas.

Pilnas matavimas, įvertinimas ir dokumentacija
Inovatyvi ir laiką taupanti montavimo koncepcija
Langams ir durims
Visiškai automatinis ventiliatoriaus durų matavimas
Atitinka standartus
Nereikia sukti įrenginio
Neigiamo ir teigiamo slėgio matavimai

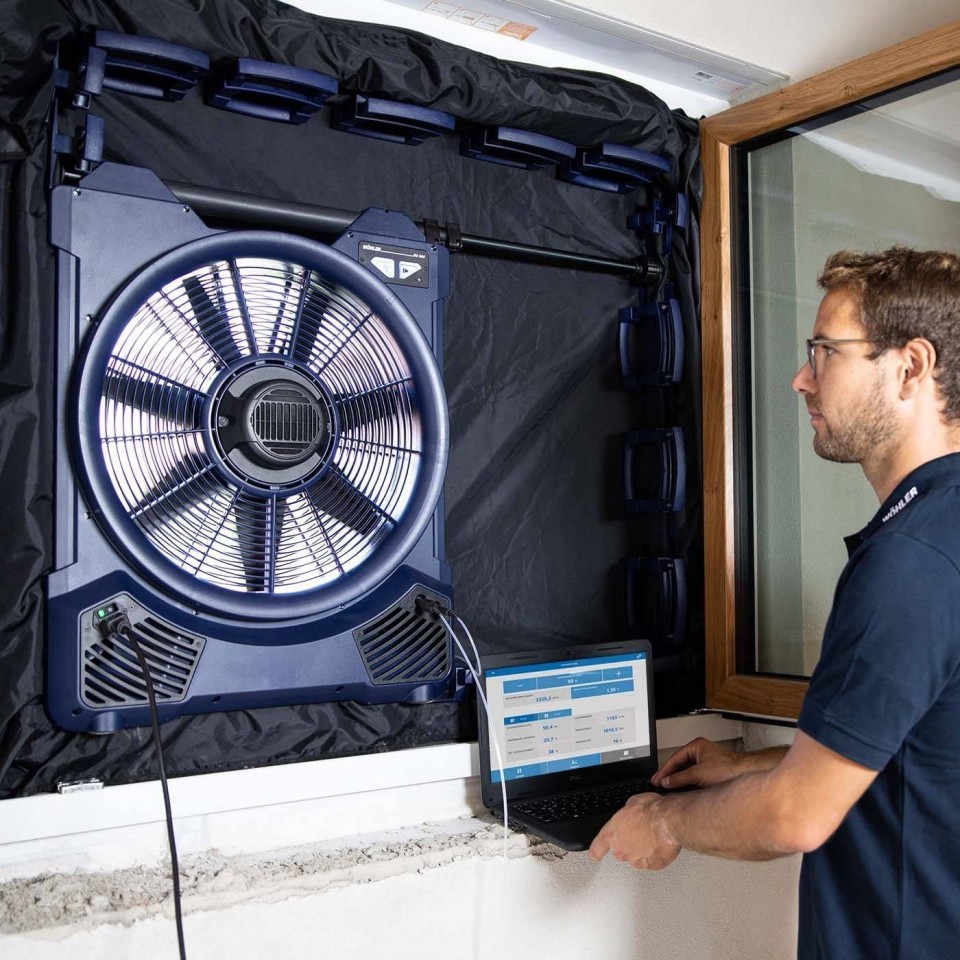

INOVATYVI IR LAIKĄ TAUPANTI MONTAVIMO KONCEPCIJA
Prie ventiliatoriaus bloko pritvirtinkite sandarinimo drobę.
Teleskopinį ventiliatoriaus bloko strypą priveržkite prie lango arba durų rėmo.
Pritvirtinkite sandarinimo drobę specialiais spaustukais prie lango ar durų rėmo.

PŪSTUVO DURŲ MATAVIMAS IŠMANIŲJŲ TELEFONŲ IR PLASTETĘ
Naudodami nemokamą programėlę Wöhler BC 600 galite lengvai valdyti ventiliatoriaus patikrinimą iš galutinio įrenginio – išmaniojo telefono ar planšetinio kompiuterio. Nuotolinio valdymo pultas per programėlę suteikia judėjimo laisvę, taip pat suteikia galimybę patogiai saugoti visus matavimo duomenis matavimo protokole ir siųsti tiesiai klientui.

Differential pressure Measurement range -100…100 Pa Resolution, display 0,1 Pa Accuracy Max of 0,25 Pa or 1 % of. meas.

Air flow rate at 50 Pa (extrapolated) Measurement range 15…6.000 m³/h Resolution, display 0,1 m³/h Accuracy ±5 % or 1,5 m³/h (higher value applies)

Air temperature Measurement range -20…+50 °C Resolution, display 0,1 °C Accuracy ±0,5 °C

Absolute pressure Measurement range 300…1.200 hPa Resolution, display 0,1 hPa Accuracy ±3 hPa

Relative Humidity Measurement range 20…80 % r.H. Resolution, display 0,1 % r.H. Accuracy ±5 % r.H.

Device data Power supply 230 V AC, 50 Hz max. power consumption 6,5 A Dimensions (W x H x D) 571 x 726 x 170 mm Weight 11,4 kg Interfaces WLAN Connections Power cable, differential pressure hoses Storage temperature -20…50 °C Working temperature 5…40 °C Recommended calibration interval annually

Sealing canvas Dimensions 1,55 x 2,60 m Opening for fan Ø 525 mm

Large clamps Clamp length 220 mm Weight 0,155 kg Dimensions (W x H x D) 220 x 50 x 141 mm

App Supported operating systems Android (from 4.0.3) / iOS (from 6.1)

The special clamp system allows the fan unit and sealing canvas to be installed tightly in windows or doors with just a few simple hand movements, even in difficult installation situations. If the door frame is still missing, the sealing canvas is simply attached to the optionally available installation frame. Negative and positive pressure measurements can then be carried out directly one after the other in a time-saving manner without having to change the measuring arrangement, because the fan automatically changes the direction of movement. The system is controlled via the Wöhler BC 600 app, which you can download free of charge to your smartphone or tablet (Android, iOS, Windows). You only have to carry your mobile device instead of a heavy, wired control unit. All measurement data is then transferred there via WLAN. The measurement sequences specified in the relevant standards EN ISO 9972 and EN 13829 are stored in the app, so that the Wöhler BC 600 can carry out the standard-compliant measurement fully automatically and a fast and correct measurement process is ensured. Manual operation is still possible at any time if required. After a change in the measuring standard, the user only has to update the app, so that the conformity of the measurements to the standard is guaranteed in the long run. If only a leakage search is to be carried out, no control device is required. The Wöhler BC 600 regulates independently to the desired differential pressure. The actual status is then signalled by the lighting of the push buttons.
